A gutsy centre delivery feed wagon to keep on top of your herd’s nutrition.
Buckton forage wagons will handle all types of fodder including chopped round bales, green feed crop, long or fine chopped silage and palm kernel. Our sensible designs make for simple maintenance and it’s easy for a single person to operate, keeping your stock fully fed when they need to be.
Key Features
- The pressed steel chassis and steel hollow section sub-frame provides torsional strength under high loads and challenging terrain.
- Heavy duty oscillating axles have durable pivot bushes which can be replaced, and large stub axles with sealed hubs.
- Simple operation with only one set of double acting hydraulics to drive the feed mechanisms. Feed rates are easily controlled with our hydraulic load sensing system.
- Large diameter hi-tensile drive shafts running in bronze bushes give a very high degree of reliability.
- Swivel tow coupling provides stability and peace of mind on hilly terrain.
- Spring latched auto-release tailgate prevents damage if the floor is accidentally reversed.
Feed width is set with adjustable control flaps
Heavy box section elevator feed bars
Low maintenance high torque gearboxes are used on the floor and elevator drives for reliable power transmission
The durable hardwood floor and stainless steel sides protect against the corrosive effects of silage
Full width floor slats ensure each load is fully cleaned out to minimise wastage. The slats are mounted to hi-tensile calibrated link chain which has been proven for years in the gritty acidic silage environment, without rusting and seizing like roller chains do
Spring-loaded trip on rear door catch

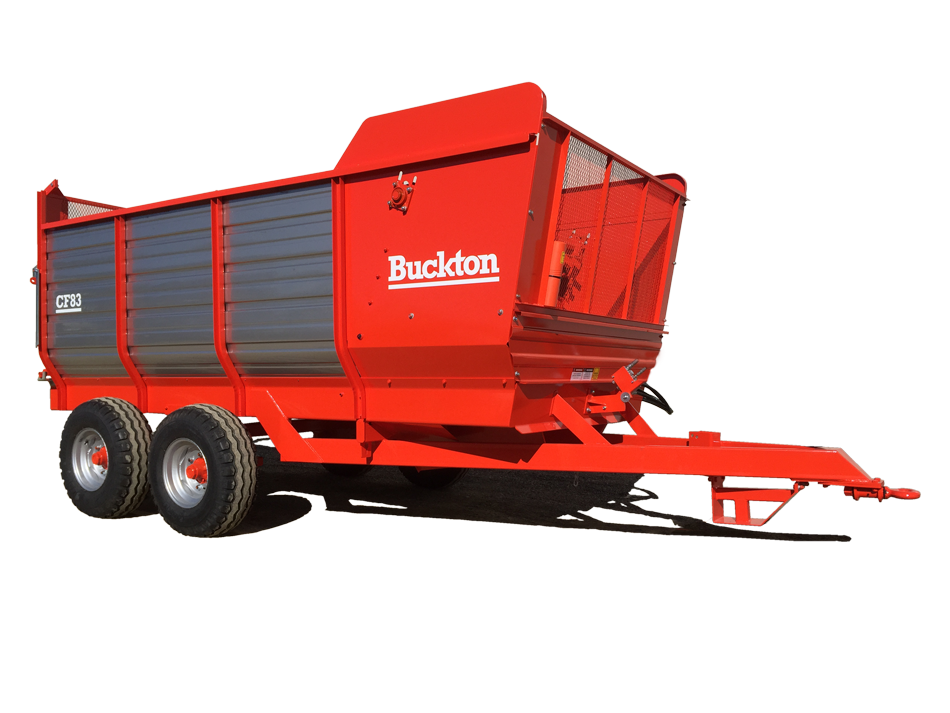

Buckton CF83 Specifications
- 5.97
- 2.70
- 2.60
- 8.3
- 11.5/80x15.3
- Tandem
- 60 (6 stud)
- 1480
- 3.2x1.22x2.14
- 2
- 3x54
- 80 screw
