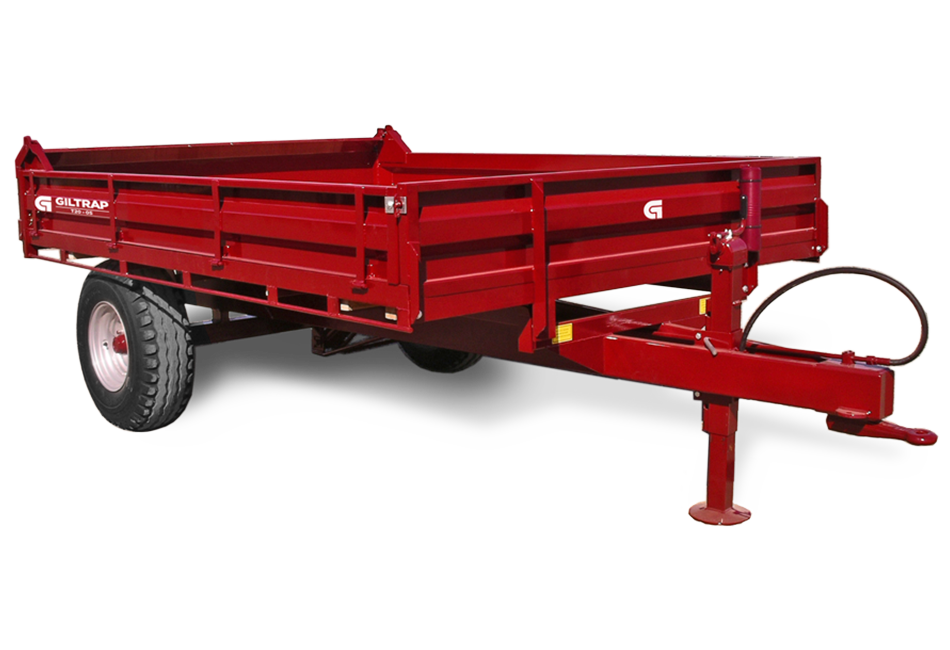

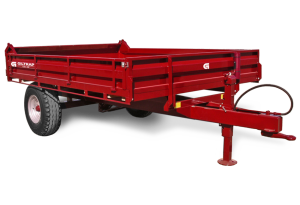

Giltrap T20-05 Trailer

Ideal for small blocks or farms, the 5 Tonne Trailer has a generous load capacity.  The wide footprint and low deck height give excellent stability on rolling terrain.

Download Brochureget_app Download Manualget_app REQUEST A QUOTE
Key Features

  • Tailgate with automatic tailgate release and spreading chains
  • Steep tipping angle
  • High ground clearance when tipped
  • Low deck height
  • Rugged front and side boards
  • Removable front board
  • Sides are hinged and removable
  • Built-in tie rails
  • Treated 35mm T & G pine deck for excellent durability
  • Single hydraulic ram to lift efficiently and prevent deck twisting
  • Guaranteed to lift evenly distributed stated working load

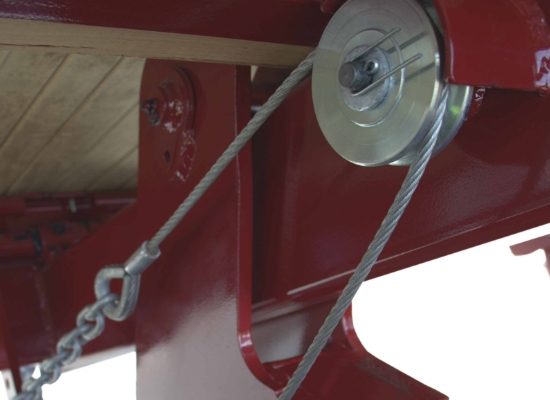

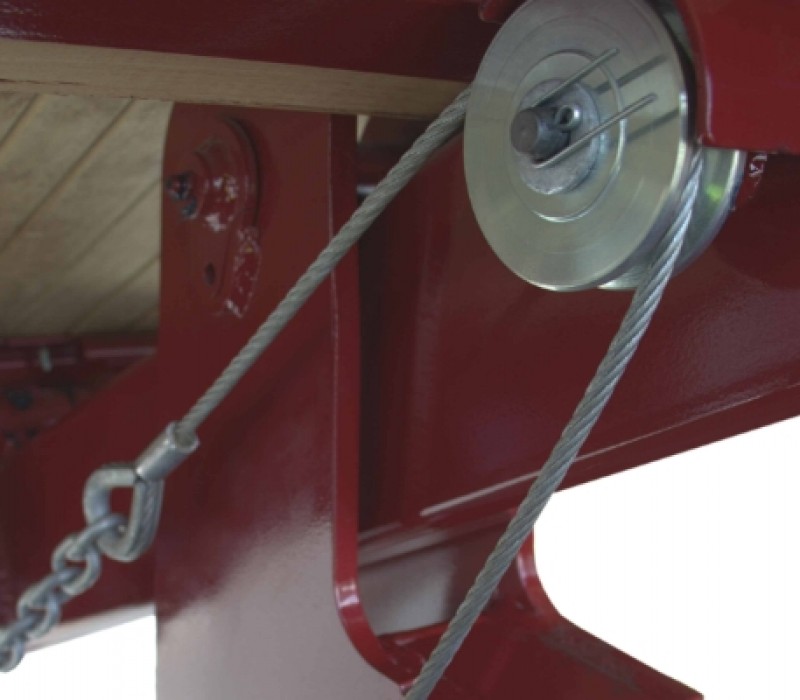

Automatic tailgate trip mechanism unlocks the tailgate when the deck is at a preset height

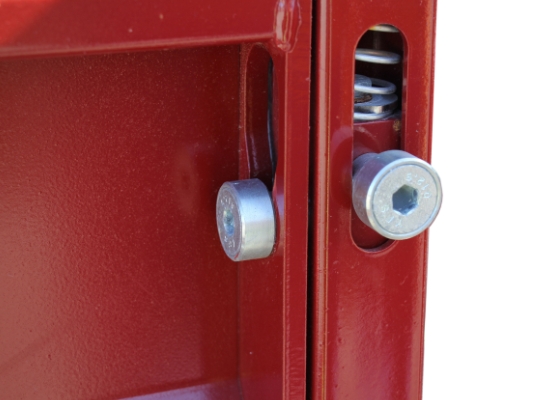

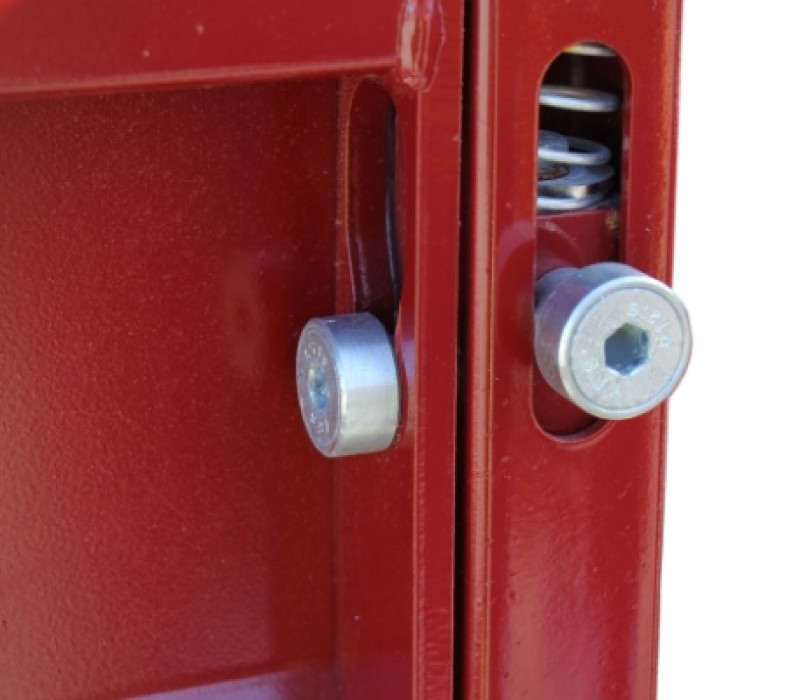

Side panels are locked to the front board with a heavy duty sprung catch

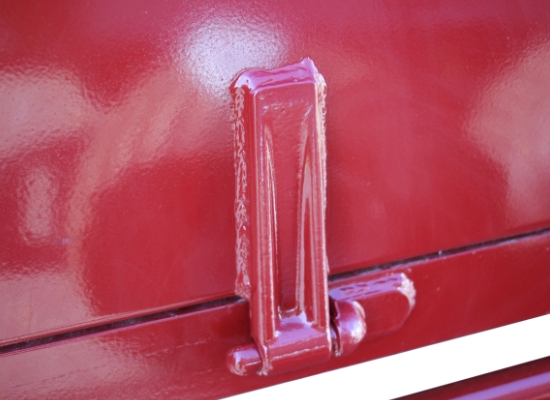

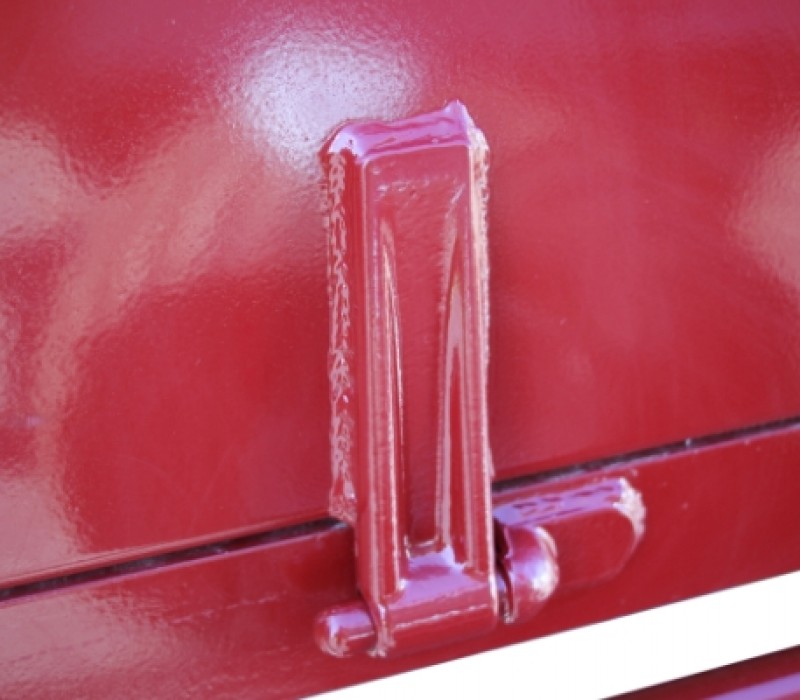

Heavy cast hinges to fold down the sides, and full length rope rails to tie items down

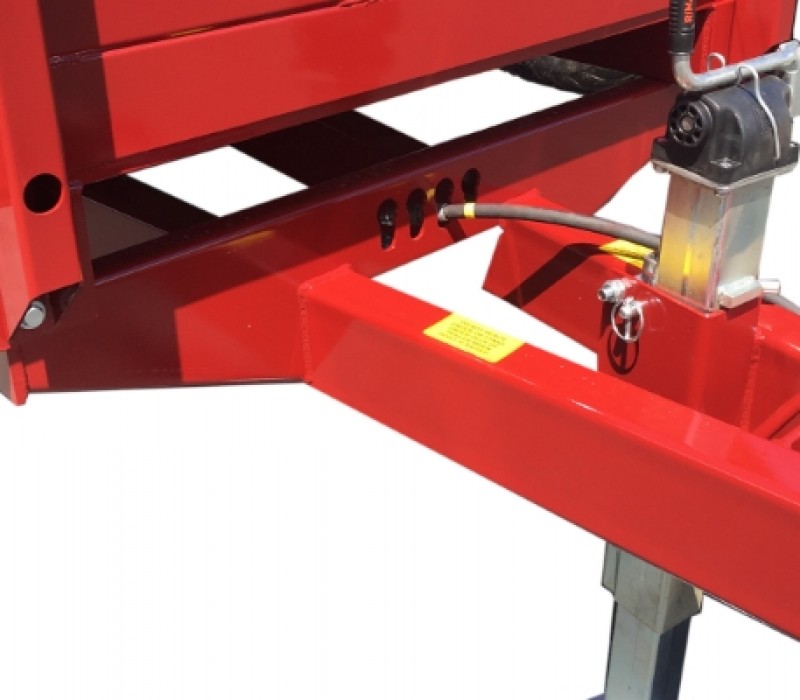

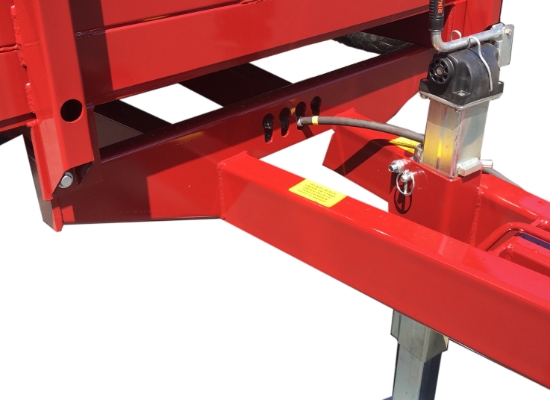

The wide spaced deck landing bar provides a stable platform to support the deck

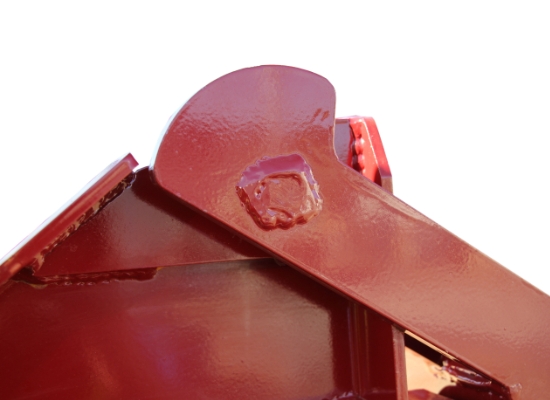

The tailgate hinge has an over-centre cam design to stop the gate coming unhooked accidentially

Request a Quote
T20-05 Specifications

  • 3.2 x 2.3
  • 2.0 & 5 tonne lift
  • 4.3
  • 55°
  • 3.5"
  • Single
  • 300
  • 1 piece hinged
  • 990
  • 0.90
  • Single
  • 60 (6 stud)
  • 11.5/80-15.3 12 ply
  • 80 screw
Request a Quote
Optional Extras

Please select your extras from the options listed below then click ‘REQUEST A QUOTE’.

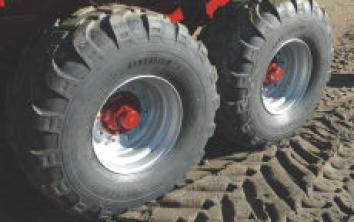

Tip Trailer wheel options

There are many types of tyre options available.  They all have various tread patterns and ground pressure properties to allow them to continue working in difficult conditions.

Below are sizes and types usually fitted to Trailers:

Hydraulic brakes

Hydraulic brakes provide operator safety and allow machine operation in difficult terrain.

Hydraulic brakes are available for most machines.  On tandem axles, brakes are fitted to the front hubs only.  If necessary, 4-wheel braking is available.  The drum brakes work off external tractor hydraulics and have an adjustable relief valve and hoses included in the kit.

Braking systems are also available for tractors fitted with factory braking circuits that then operate when the brake pedal is depressed.

LED tail lights
K80 ball hitch

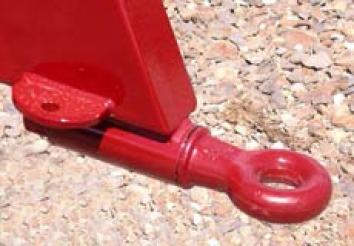

Swivel hitch

Improve your safety by specifying a swivel hitch for your trailer.  This feature is standard on all trailers 6T and larger.

It reduces the stress on the tractor draw-bar by removing the twisting forces caused by everyday use.

Tip Trailer deck options

The Tip Trailers come with the following deck options:

32mm tanalised pine tongue & groove is supplied as standard. This heavy duty floor is tough and durable and will last for many years. It allows the deck to flex as it moves and won't pool water.
This is in lieu of the standard timber deck. It is 5mm thick plate and includes extra cross-members for extra strength over the entire deck. Thicker plate is also available upon request.
This option keeps the standard timber deck underneath but includes a 2mm steel overlay. It has the advantage of still having the ‘give' of timber while maintaining a smooth, tough skin. Available on tip trailers only.
Hay extension

The hay extension adds an extra 900mm (3 ft) to the deck length.  This increases the capacity of your trailer during harvest season allowing extra bales to be carried.

It is also quick and simple to fit and remove.

Hydraulic gate release

Hydraulic gate release.

The operator can now hydraulically trip the tailgate at any stage regardless of hoist height giving complete control over load spreading.

Side opening tailgate

No need to remove the tailgate when carrying longer loads or if it's not required.  Simply remove the locking pin and swing the tailgate around so that it's parallel to the left-hand sideboards and relock.

All Models In Range
T20-05

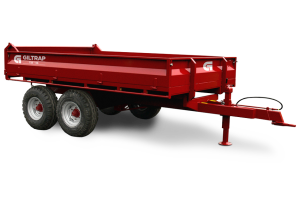

T23-06

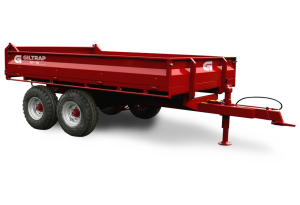

T37-08

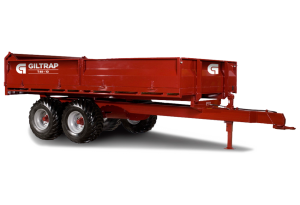

T49-10
