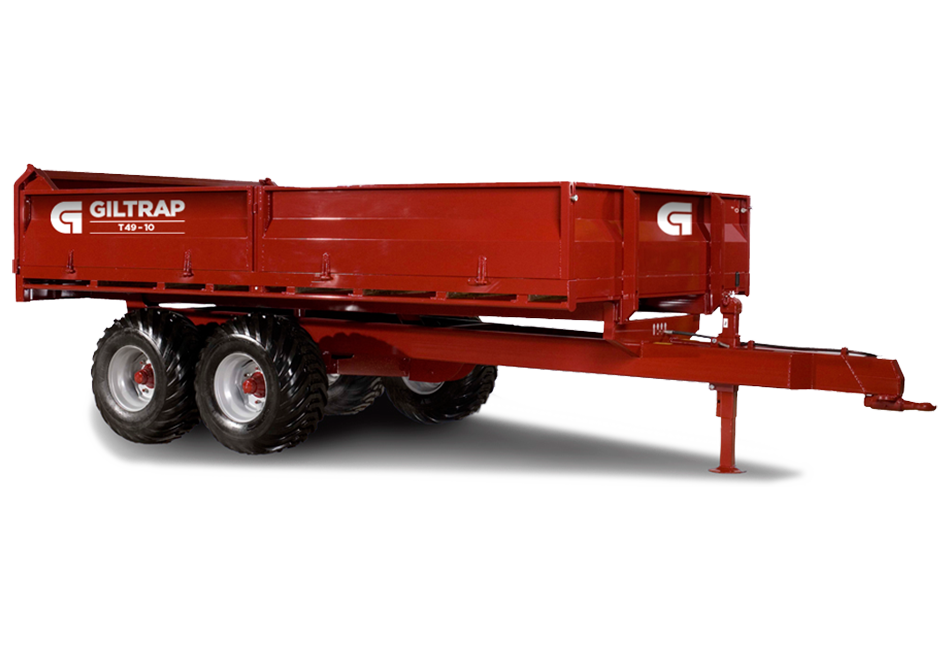

Ideal for large farming applications or contracting operations, the 10 Tonne Trailer has an excellent load capacity with its robustly designed chassis. The heavy-duty tandem axle with wide flotation wheels and low deck height, give excellent stability on rolling terrain.
Key Features
- Tailgate with automatic tailgate release and spreading chains
- Steep tipping angle
- High ground clearance when tipped
- Low deck height
- Replaceable bushes on main axle pivot
- Rugged 2-piece (3mm) removable pressed sides
- Removable front board
- Built-in tie rails
- Treated 35mm T & G pine deck for excellent durability
- Single telescopic ram (with hard chromed stages) to lift efficiently and prevent deck twisting
- 4-way pivot on the ram base mount to prevent side-loading damage
Automatic tailgate trip mechanism unlocks the tailgate when the deck is at a preset height
Side panels are locked to the front board with a heavy duty sprung catch
Heavy cast hinges to fold down the sides, and full length rope rails to tie items down
The wide spaced deck landing bar provides a stable platform to support the deck
The tailgate hinge has an over-centre cam design to stop the gate coming unhooked accidentally
T49-10 Specifications
- 4.2m x 2.3m
- 4.9m3 and 10 tonne lift
- 5.75m
- 57°
- 107/91/76/61
- 4-stage single acting tele
- 500mm
- 2 piece fold down
- 2340kg
- 1.0m
- Tandem
- 70mm (6 stud)
- 400/60 x 15.5 14ply
- 80mm screw
- 21.7m3
